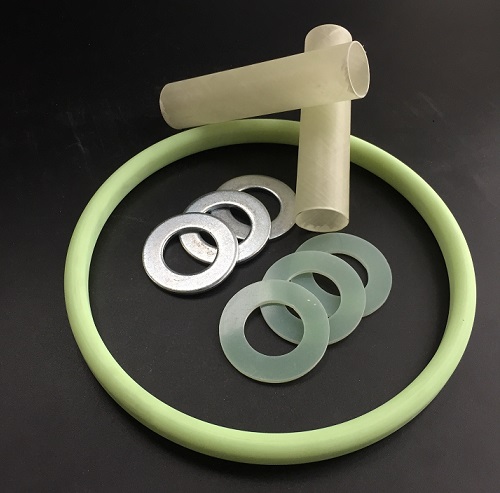

Type D Flange Insulation Gasket Kits are insulating ring joint gaskets made to fit the ring groove of Ring Type Joint flanges. The Type D central gasket is made of medium weave fabric-reinforced phenolic, manufactured to ASA (ANSI) gasket dimensions. Properties are similar to those of phenolic flat central gaskets and are available in the basic octagonal shapes. Oval shapes can be ordered by special request. When installing Type D gaskets, it is also recommended that tape be wrapped around the outside of the flange to prevent foreign material from lodging between the exposed portions and causing "shorting out" of the flanges. Alignment pins should be used whenever possible to assure proper alignment of flanges when installing all flange insulation sets. Pins should be a minimum of 3/32" (2.38mm) larger than the bolt size.
Gasket Materials
Type D Flange Insulation Gaskets are suitable for RTJ flange, they can be produced according to ASME and API flange standard.
